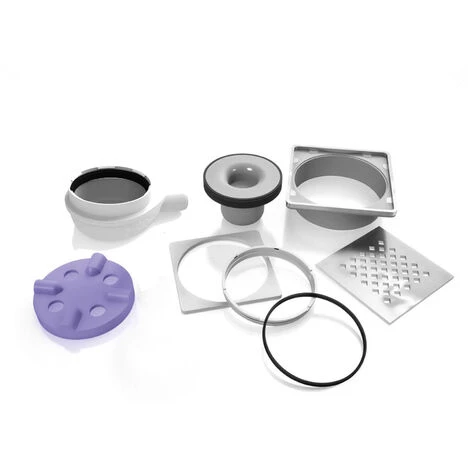

Jackon Horizontal Siphon (0.9 L/s) For Aqua (4512007)

Always the right choice: Horizontal or vertical drains.

JACKOBOARD® Aqua drainage systems are perfectly matched to JACKOBOARD® Aqua shower trays. There are various versions: the ultra-flat horizontal drain with a minimum thickness of only 97 mm including the shower tray and the vertical drain.

Technical features of the JACKOBOARD® Aqua drainage systems :

• High-quality design grates made of solid brushed stainless steel
• Height-adjustable grate from 3 to 18 mm

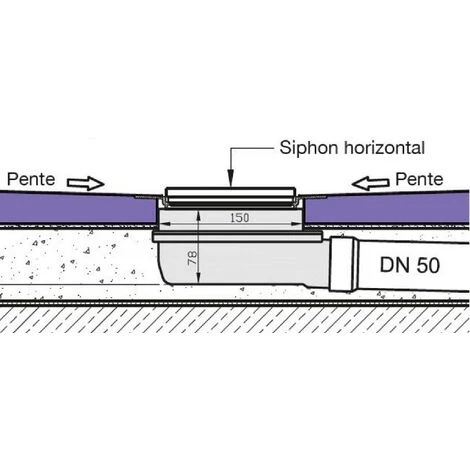

• Ultra-flat horizontal drain with a minimum thickness of 97 mm, including the shower tray
• Flow rate of 0.9 l/s
• Drain height 50 mm
• DN 50 (horizontal), DN 40/50 (vertical)
• Drainage connection made of glueable ABS plastic

Advantages of the JACKOBOARD® Aqua drainage systems:

• Perfectly suited to the technical requirements of JACKOBOARD® Aqua shower trays.

Ideal solution:

• For the quick installation of perfectly matched drainage systems for all JACKOBOARD® Aqua shower trays.

Video presentation : https://www.youtube.com/watch?v=QuToE1_YmW0
